50LPM Pressure Pump DP57B Series

Pressure Demand Transfer Pump，50LPM

Standard Model: DP57B-13006012

Voltage：12V

Open Flow：13GPM / 50LPM

Max Draw：30A

Shut-off Pressure：60PSI / 4BAR

Email Consultation Related Videos

Relevant Part

57F001

57F002

57F003

Product Details

Features and Advantages:
  • Specialty EPDM elastomer or Viton options available
  • Optional 12 Volt DC or 24 Volt AC motor
  • 1.5meter cord with alligator clips and in-line fuse(DC only)
  • Weather-protected switch, Internal by pass protects pump during shutdown
  • 1inch MNP Tinlet, 1inch FNPT outlet
  • Diversion capacity up to 2.5meters
Technical specification:
ModelVoltageOpen FlowMax AmpsShut-off Pressure
DP57B-1300601212V13GPM / 50LPM30A60PSI / 4BAR
DP57B-1300602424V13GPM / 50LPM15A60PSI / 4BAR
Dimension Parameter:

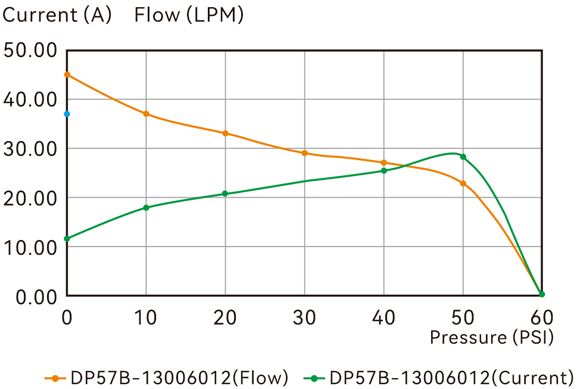

Performance Curve:


Standards and Customization:
Content Standard parameters Customizable parameters
Voltage DC 12/24V DC 36/48V, AC115V
Open flow 10.5GPM / 40LPM

13GPM / 50LPM
Shut-off pressure 60PSI / 4BAR 60PSI / 4BAR
Liquid Pesticide Freshwater
Valve material Viton EPDM
Diaphragm material TPV TPV
Shipping Information:
Content Parameters
Unit Weight 5.6 Kg (12.35 lbs.)
Single Unit Packing Size (LxWxH) 31.5cm x 21cm x 18cm(12.40" x 8.27" x 7.09")
Single Unit Packing Weight 5.85 Kg (12.90 lbs.）
Outer Box Packing Size (LxWxH) 44 cm x 33.5 cm x 39 cm (17.32"x 13.19"x 15.35")
Number of Outer Boxes 4 units
Container Weight 22.2 Kg (48.94 lbs.)
Container Volume 0.057m³
