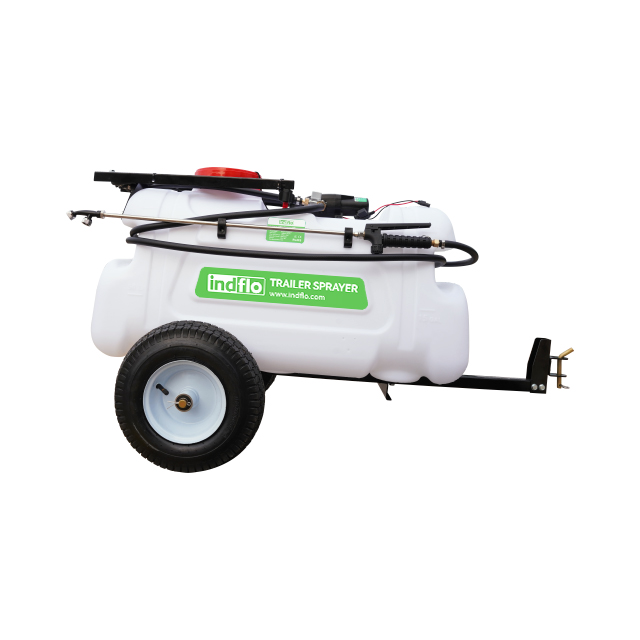

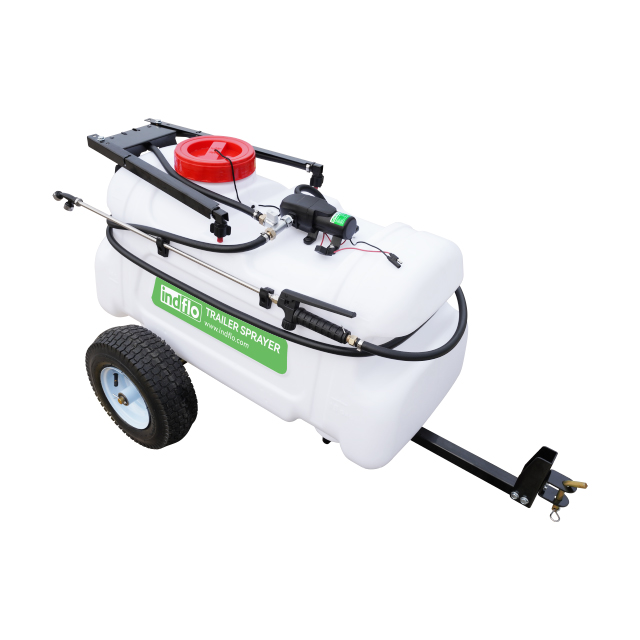

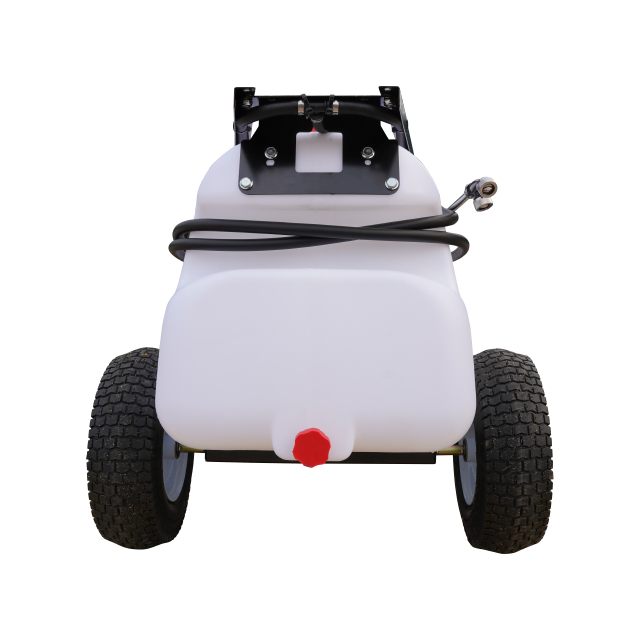

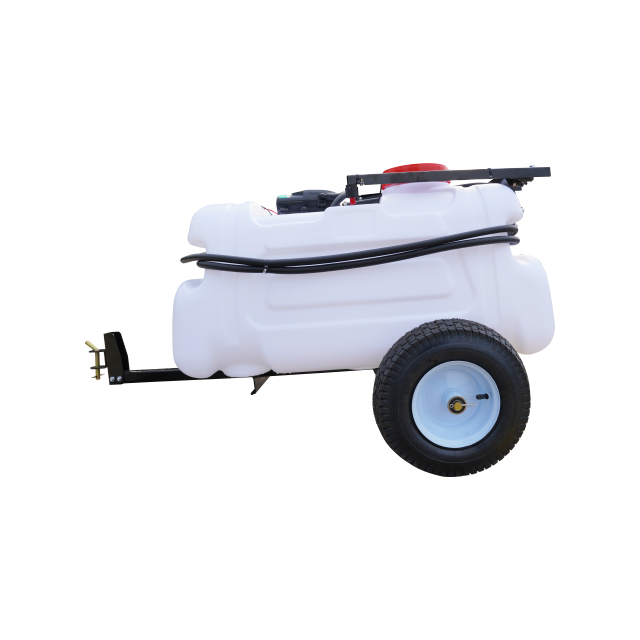

High Pressure Sprayer, Pesticide Sprayer, Garden Sprayer, Agricultural Automatic Sprayer
15G Series Products
Model: VS03-G1523
Tank Capacity: 15 GAL (50L)
Spray gun: SFSG-S02
Work Pressure: 45 PSI
Matched Pump: DP23Y-01206012
Open flow: 1.2GPM / 4.5LPM
Shut-off Pressure: 60PSI / 4.1BAR
Pressure Regulating Valve: NO

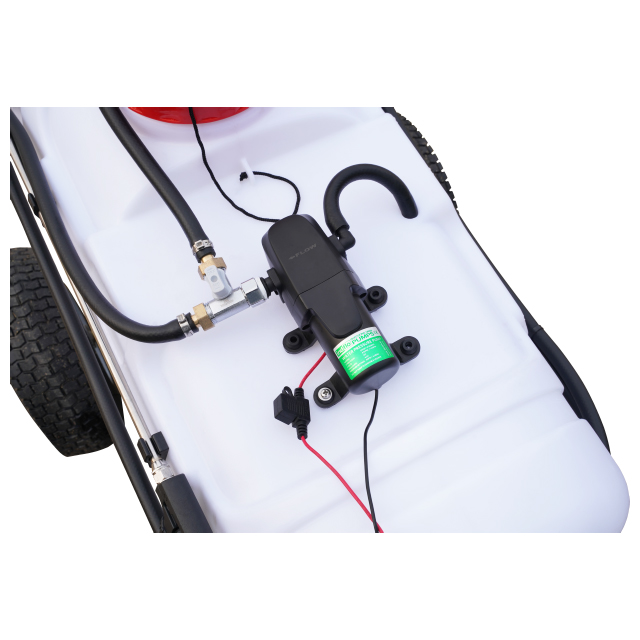

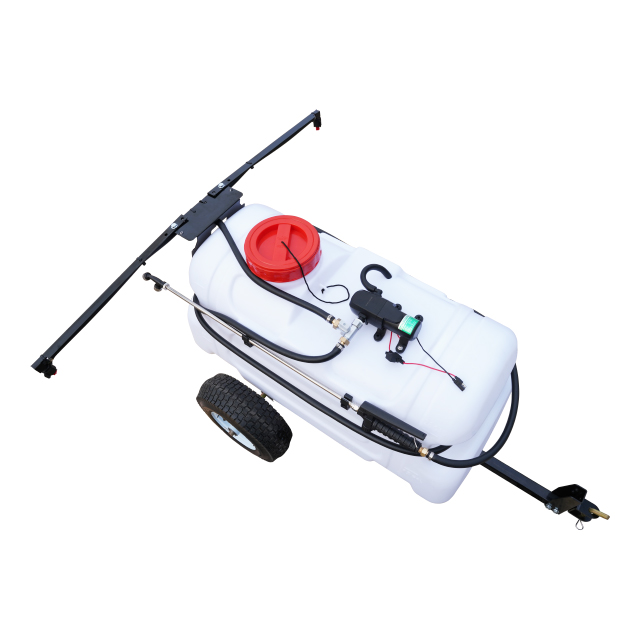

INDFLO15 gallon trailer spray is equipped with professional grade agricultural pump with in-line fuse. UV resistant high-strength HDPE water bucket, paired with a large water inlet cap. The multi spray arm can be freely adjusted, making it easier to complete larger area operations.The multi spray width reaches 3080mm and the spray radius reaches 1000mm. Small vehicle mounted spraying equipment, which is very suitable for spraying, killing, and irrigation of lawn, garden and shrub, as well as for washing fences, railings, glass, floors, etc.
| Model | Volume | Spray Gun | Nozzle Model | Work Flow | Work Pressure | Matched Pump | Open Flow | Shut Off Pressure | Pressure Regulating Valve |
| VS03-G1523 | 15Gal(50L) | SFSG-S02 | SFSN-D2002 | 2.2LPM | 45PSI | DP23Y-01206012 | 1.2GPM/4.5LMP | 60PSI/4.1BAR | No |
| SFSN-D1002 | 2.4LPM | 40PSI | |||||||
| Multi-spray | 2*D1.5 Nozzle | 2.8LPM | 16PSI | ||||||
| VS03-G1522 | 15Gal(50L) | SFSG-S02 | SFSN-D2002 | 2.8LPM | 66PSI | DP22Y-01510012 | 1.5GPM/5.7LMP | 100PSI/6.9BAR | No |
| SFSN-D1002 | 2.85LPM | 60PSI | |||||||
| Multi-spray | 2*D1.5 Nozzle | 3.9LPM | 26PSI | ||||||
| VS03-G1523 | 15Gal(50L) | SFSG-S02 | SFSN-D2002 | 3.0LPM | 80PSI | DP35Y-02010012 | 2.0GPM/7.6LMP | 100PSI/6.9BAR | YES |
| SFSN-D1002 | 3.2LPM | 80PSI | |||||||
| Multi-spray | 2*D1.5 Nozzle | 5.4LPM | 46PSI | ||||||
| VS03-G1543 | 15Gal(50L) | SFSG-D02 | SFSN-D2002 | 3.0LPM | 80PSI | DP43Y-03006012 | 3.0GPM/11.4LMP | 60PSI/4.2BAR | YES |
| SFSN-D1002 | 3.2LPM | 80PSI | |||||||
| Multi-spray | 2*D1.5 Nozzle | 5.4LPM | 46PSI |
| Content | Parameters | ||||
| VS03-G1523 | VS03-G1522 | VS03-G1535 | VS03-G1543 | ||
| Unit Net Weight | 17.2 kg | 18.5 kg | 19.9 kg | 20.3 kg | |
| Master Carton Qty | 1 pcs | 1 pcs | 1 pcs | 1 pcs | |
| Master Carton Size (L x W x H) | 78.5 x 38 x 53 cm | 78.5 x 38 x 53 cm | 78.5 x 38 x 53 cm | 78.5 x 38 x 53 cm | |
| Master Carton Weight | 19.2 kg | 20.5 kg | 21.9 kg | 22.3 kg | |
