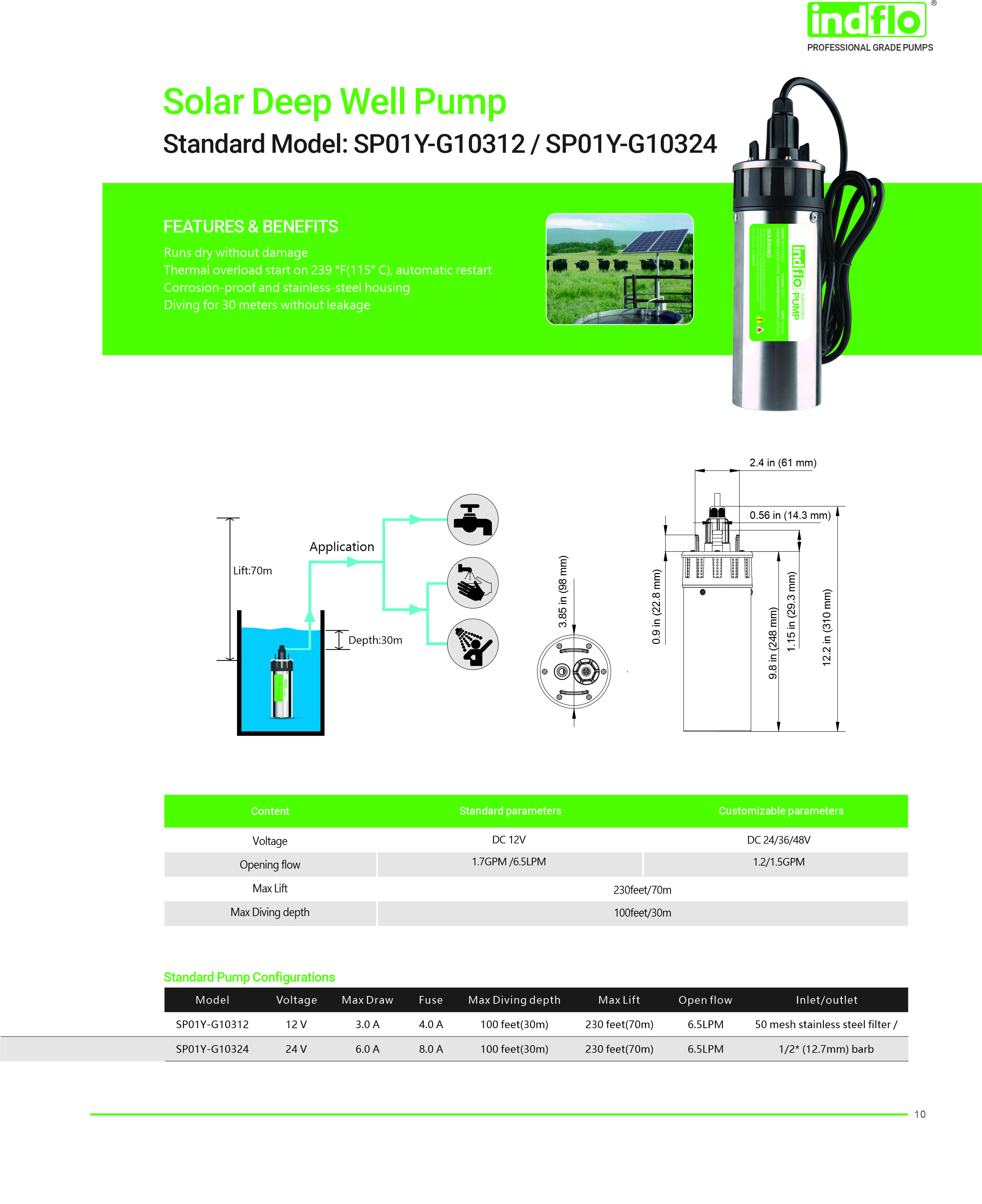

Standard Model: SP01Y-G10312 / SP01Y-G10324
Voltage：12V
Fuse : 4.0A
Open Flow：6.5LPM
Max Current：3.0A
Max Lift: 230 feet (70m)
Inlet/outlet: 50 mesh stainless steel filter / 1/2* (12.7mm) barb

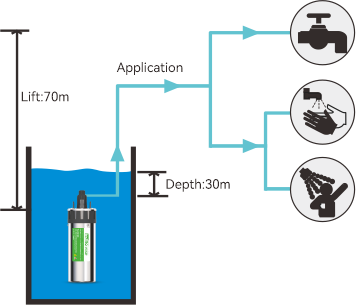

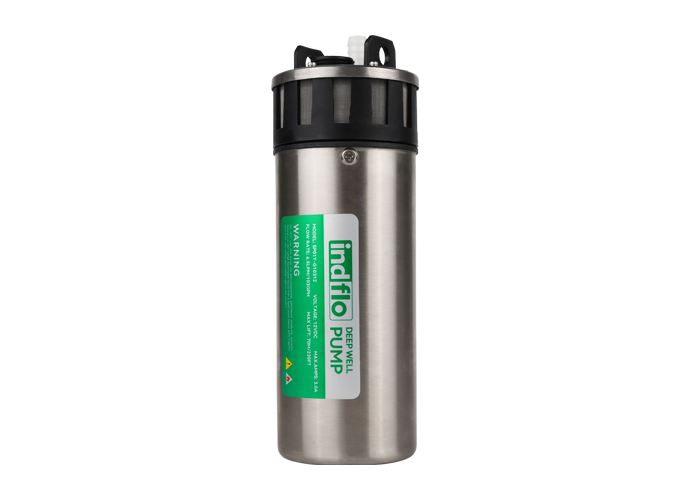

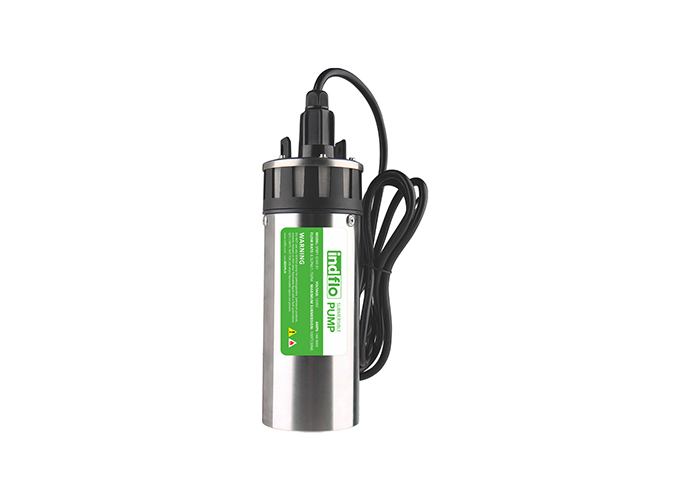

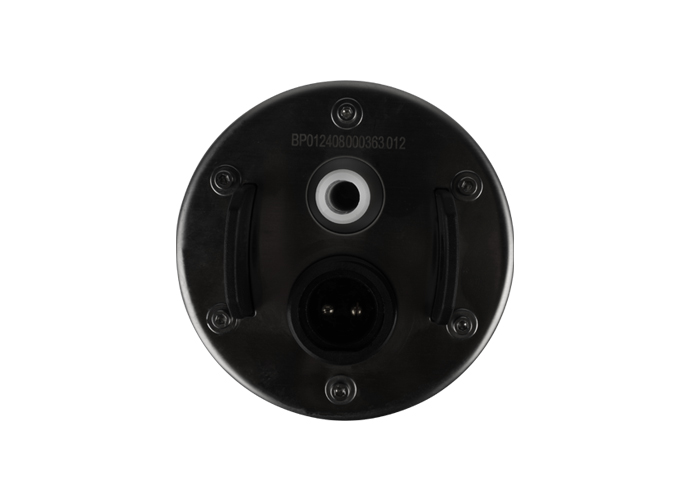

INDFLO solar powered deep well submersible pump can provide you with a remote water solution. The pump is robust, durable and has a long life. Easy to use in direct connection with 24V solar panels or other energy systems of the same voltage, this pump has a maximum head of up to 70 m (230 ft), a maximum submersible depth of up to 30 m (100 ft), and a maximum flow rate of up to 6.5 L/M. It can be operated dry, and comes with thermal protection. Ideal for remote livestock watering, irrigation, pond oxygenation, remote domestic and camping area water supply.
| Model | Voltage | Max Amps | Fuse | Max Diving depth | Max Lift | Open Flow | Inlet/outlet |
| SP01Y-G10312 | 12V | 14.0A | 4.0A | 100 feet(30m) | 230 feet(70m) | 6.5LPM | 50 mesh stainless steel filter / 1/2* (12.7mm) barb |
| SP01Y-G10324 | 24V | 6.0A | 8.0A | 100 feet(30m) | 230 feet(70m) | 6.5LPM |
| Content | Standard parameters | Customizable parameters | |
| Voltage | DC 12V | DC 24/36/48V | |
| Open flow | 1.7GPM / 6.5LPM | 1.2/1.5GPM | |
| Max Lift | Max Diving depth | ||
| Max Diving depth | 100feet/30m | ||

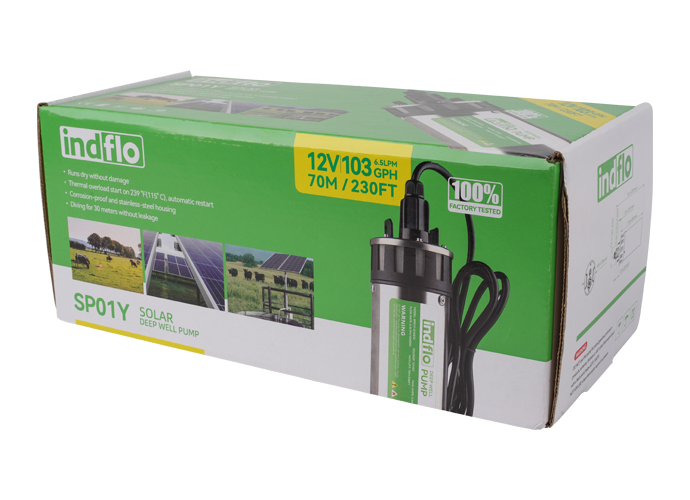

| Content | Parameters |
| Unit Weight | 4.2 Kg (9.26 lbs.) |
| Single Unit Packing Size (LxWxH) | 32cm x 14.5cm x 13.5cm(12.60" x 5.71" x 5.32") |
| Single Unit Packing Weight | 4.875 Kg (10.75 lbs.） |
| Outer Box Packing Size (LxWxH) | 34.1 cm x 31.5 cm x 30.5 cm (13.43"x 12.40"x 12.01") |
| Number of Outer Boxes | 4 units |
| Container Weight | 19.5 Kg (42.99 lbs.) |
| Container Volume | 0.033m³ |
