Home > Products > Flexible Impeller Pumps

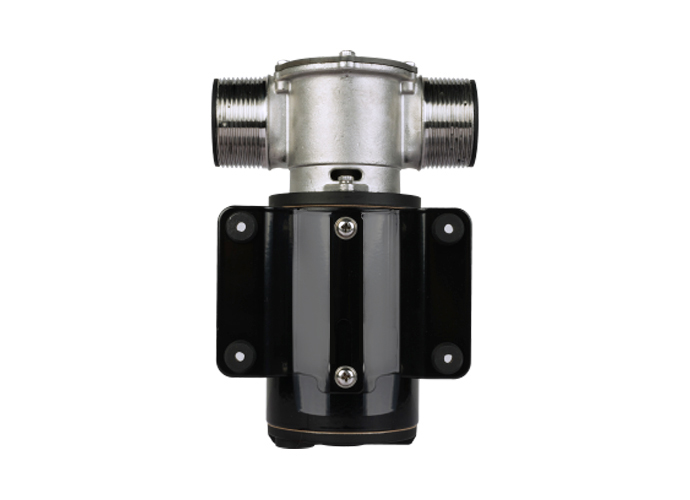

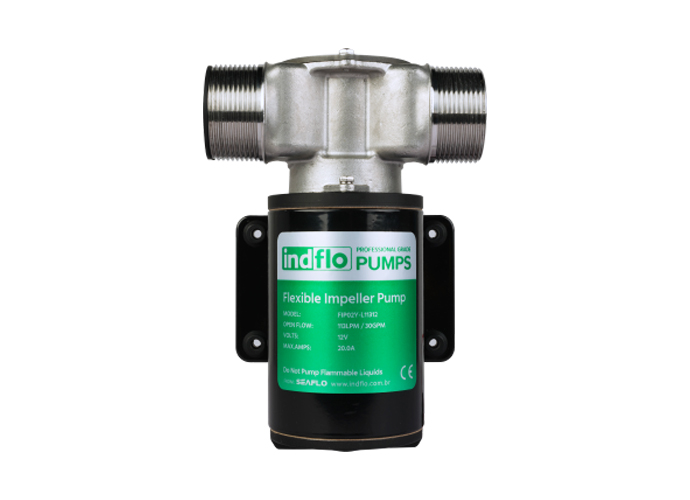

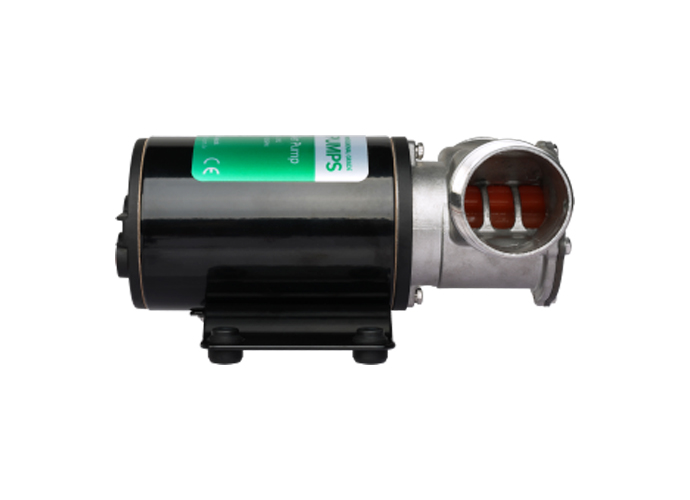

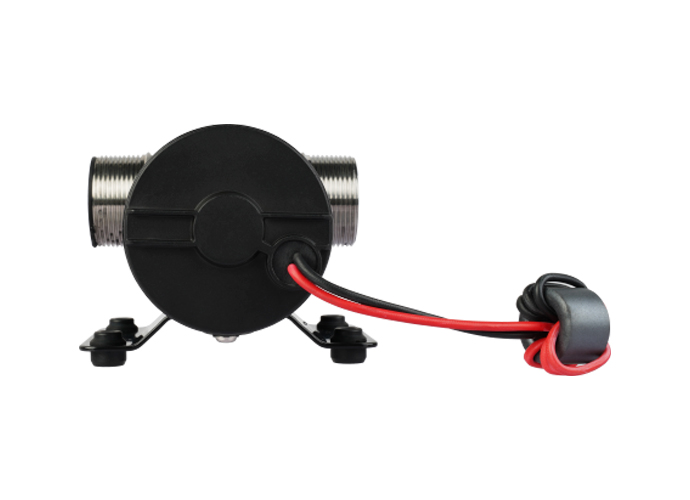

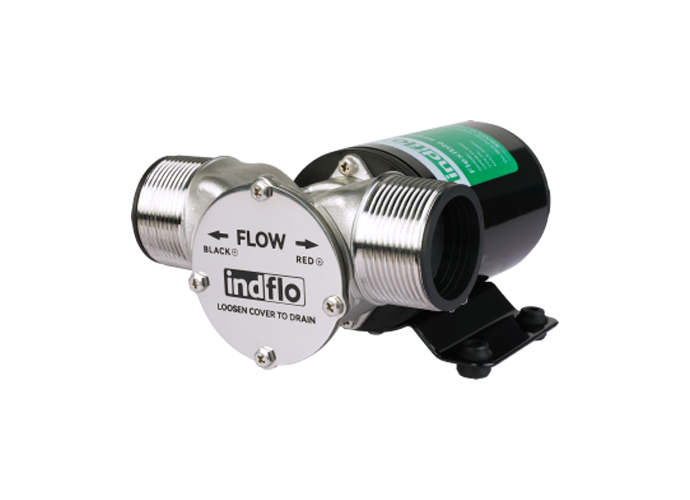

113L/M Flexible Impeller Pump 02Y Series

Pressure wave pumps, Self-priming centrifugal pumps, Flexible impeller pumps

Standard Model: FIP02Y-L11312

Voltage：12V

GPM/LPM: 30/113

Impeller: TPU

Head: 2m/6.5ft

Amp(A): 20

Ports: 1-1/2"NPT













Email Consultation Related Videos

Relevant Part

Accessories for flexible impeller pump 02Y series

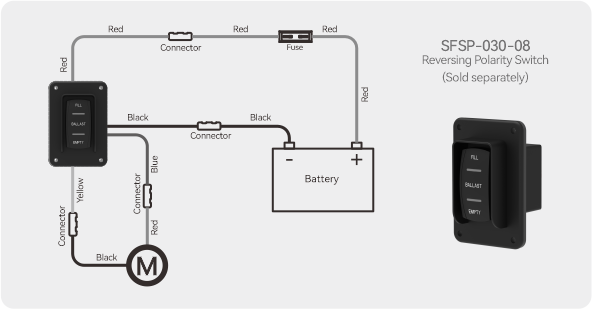

SFSP-030-08 Reversing Polarity Switch

Product Details

Product Introduction:
The INDFLO 02Y series flexible impeller pump has extremely strong performance, with a maximum flow rate of 30GPM. Configuring a reverse polarity switch can complete filling or emptying tasks in a short period of time. High quality polyurethane impeller material, with good wear resistance, can be widely used for the extraction of fresh water, seawater, sewage, pesticides, etc. Its high-performance motor ensures stability and high performance, and is equipped with built-in thermal protection function.
Features and Advantages:
  • Reversible pump both fills and empties ballast tanks
  • 30 GPM / 113 LPM flow rate
  • Self-priming to 6.5 ft. (2m)
  • Use with Reversing Polarity Switch to fill or empty ballast tanks
  • High performance and output of intermittent work cycles
  • Improved impeller designed for run dry for short duration
  • Built in thermal overload protection, automatically reset after cooling
Technical specification:
Model Voltage GPM/LPM Impeller Head Amp(A) Ports
FIP02Y-L11312 12V 30/ 113 TPU 2 m / 6.5 ft 20 1-1/2″NPT
FIP02Y-L11324 24V 30/ 113 TPU 2 m / 6.5 ft 10 1-1/2″NPT
Dimension Parameter:

Shipping Information:
Content Parameters
Unit Weight 3.2 Kg (7.05 lbs.)
Single Unit Packing Size (LxWxH) 24cm x 16.5cm x 12cm(9.45" x 6.50" x 4.72")
Single Unit Packing Weight 3.4 Kg (7.50 lbs.）
Outer Box Packing Size (LxWxH) 52.5 cm x 26 cm x 27 cm (20.67"x 10.24"x 10.63")
Number of Outer Boxes 4 units
Container Weight 19.9 Kg (43.87 lbs.)
Container Volume 0.037m³
