High Pressure Centrifugal Pump 21GPM-Spray Pump-indflopump

Product Details Document Download Leave Message

High Pressure Centrifugal Pump 21GPM

Standard Model: CP02B-21001412

Voltage: 12V

Max Draw: 16A

Fuse: 20A

Open Flow: 21GPM/80LPM

Max Head: 10m/33ft

Ports: 3/4" BSP

Email Consultation Related Videos

Product Details

Product Introduction:

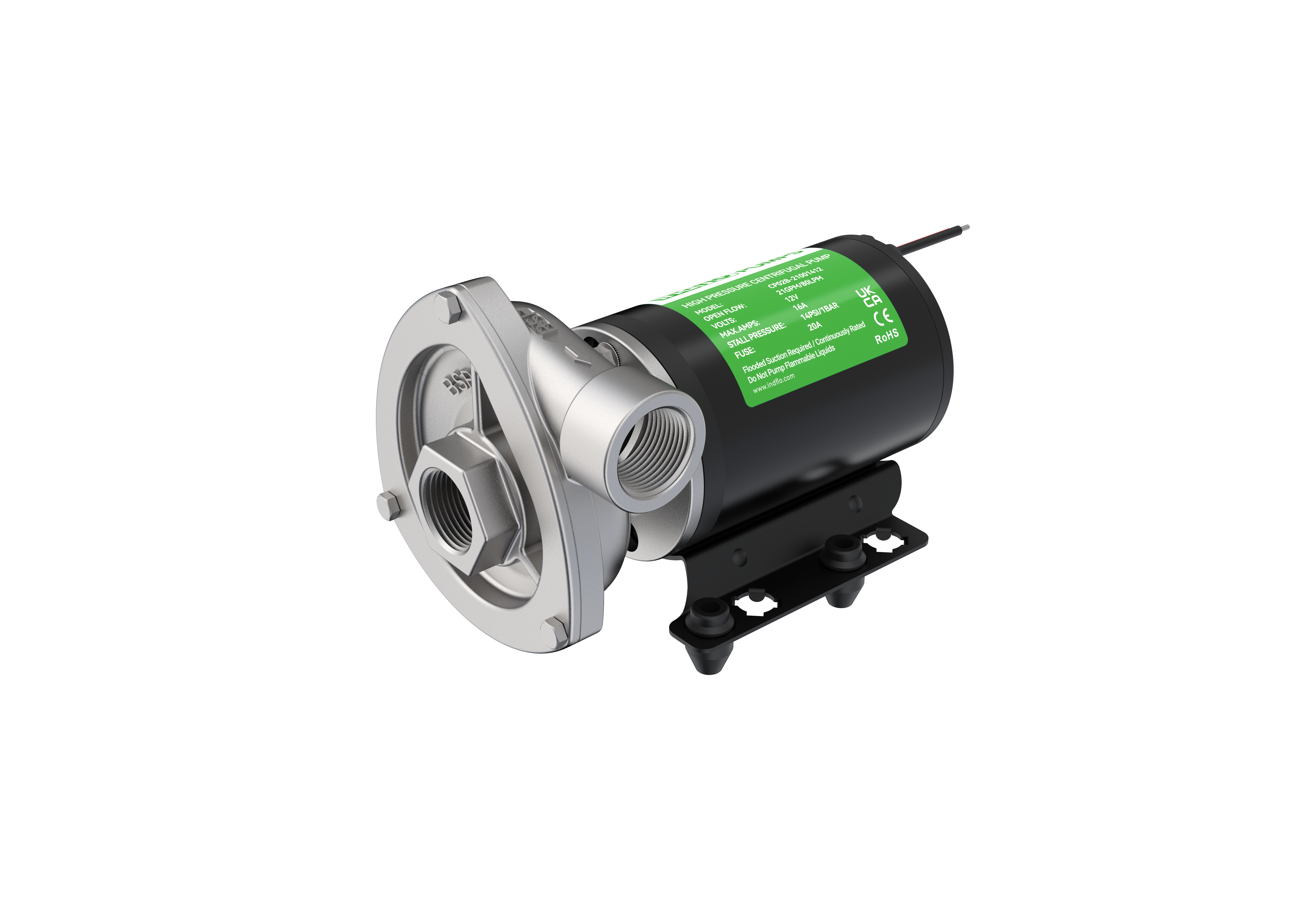

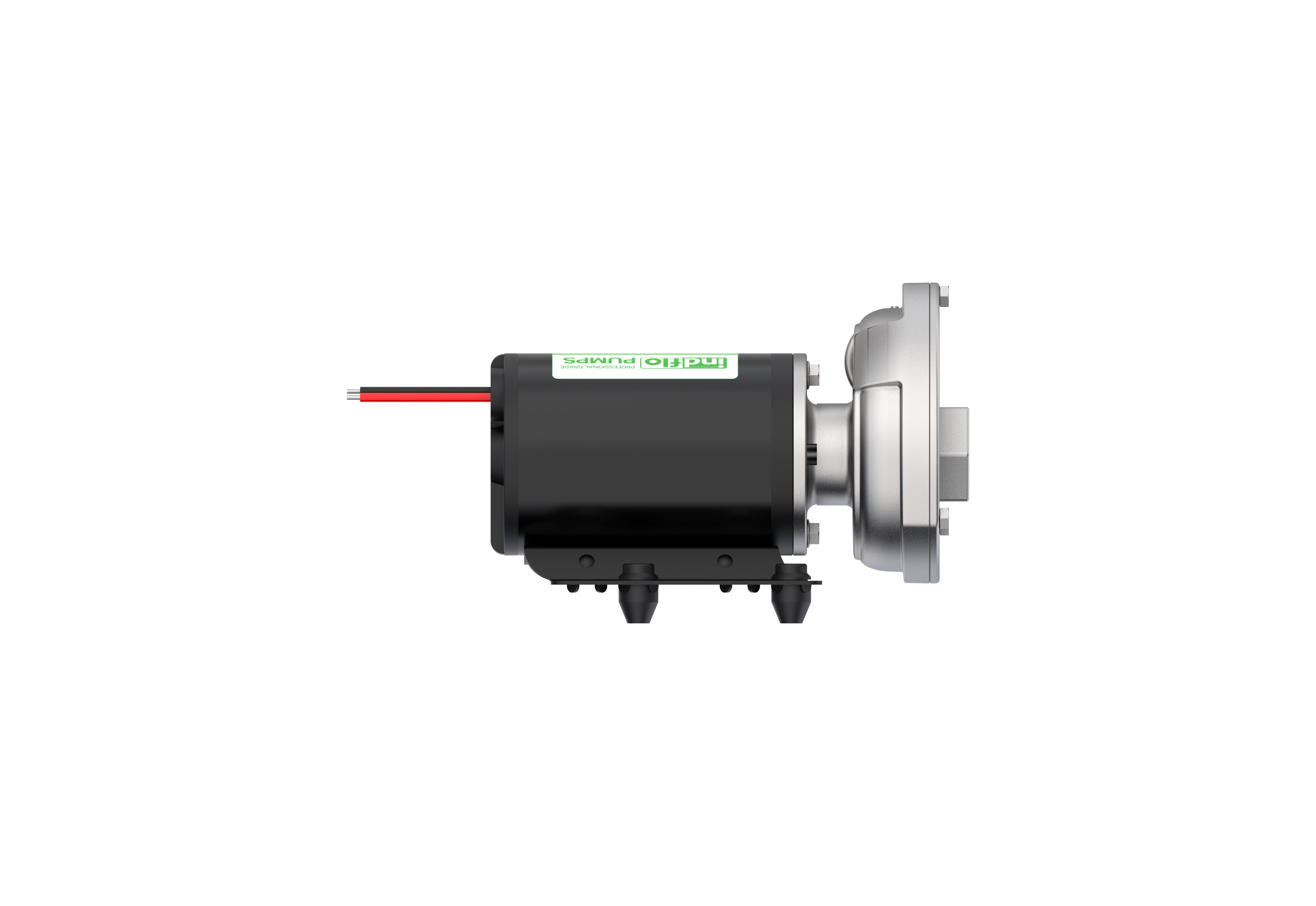

This heavy-duty 316L stainless steel centrifugal pump is designed for liquid circulation and transfer applications. It is equipped with a long-life DC motor and features high flow capacity and high-temperature resistance. It is suitable for the transfer of agricultural liquid, antifreeze, and mild chemicals.

Features and Advantages:

Handles seawater, fresh water, antifreeze, mild chemicals, and bilge water
Resistant to general chemicals and non-polar solvents
Suitable for liquid circulation and transfer applications
Connections for 3/4" BSP/NPT
Continuously rated
Fluid temperature range: 4ºC (39ºF) min to 95ºC (203ºF) max

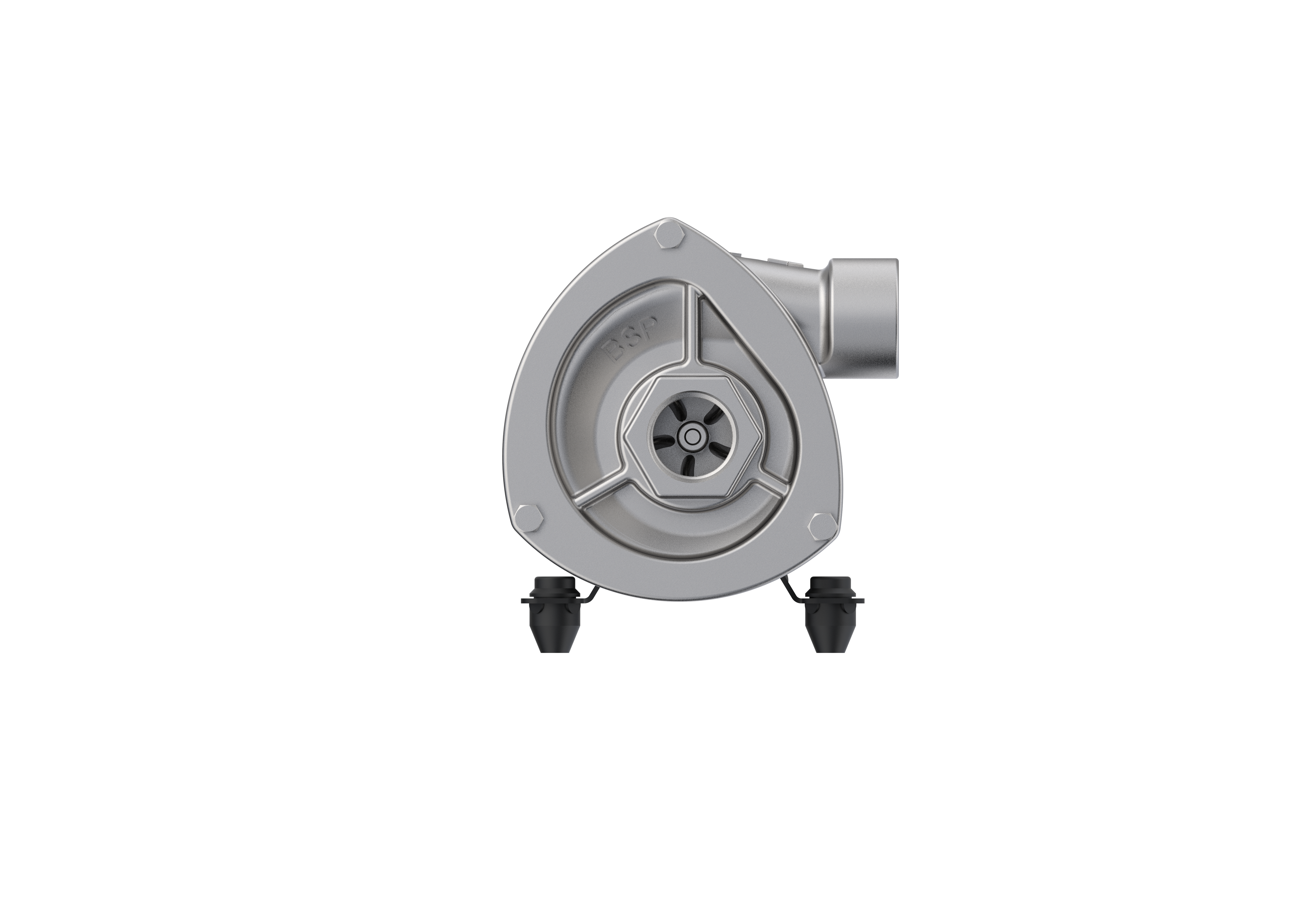

Head unit rotates in 90° segments , offering 4 port options
316L stainless steel pump head

Stainless steel anti-clogging impeller

Technical specification:

Model	Volts	Open Flow	Max Draw	Fuse	Stall Pressure	Max Head	Ports
CP02B-21001412	12V	21GPM/80LPM	16A	20A	14PSI/1.0Bar	10m/3ft	3/4" BSP
CP02B-21001424	24V		9A	15A			3/4" BSP
CP02N-21001412	12V		16A	20A			3/4" NPT
CP02N-21001424	24V		9A	15A			3/4" NPT

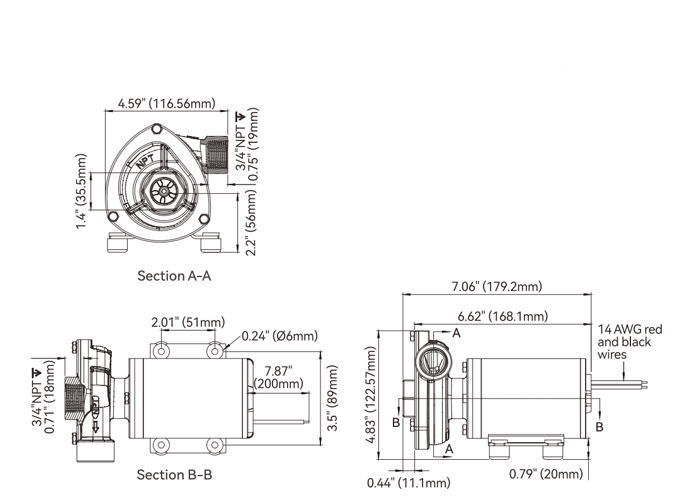

Dimension Parameter:
