Low Pressure Centrifugal Pump 29GPM

Standard Model: CP01B-29000812

Voltage: 12V

Max Draw: 13A

Fuse: 15A

Open Flow: 29GPM/110LPM

Max Head: 5.5m

Ports: 3/4" BSP

Email Consultation Related Videos

Product Details

Product Introduction:

This heavy-duty 316L stainless steel centrifugal pump is designed for liquid circulation and transfer applications. It is equipped with a long-life DC motor and features high flow capacity and high-temperature resistance. It is suitable for the transfer of agricultural liquid, antifreeze, and mild chemicals.

Features and Advantages:

Handles seawater, fresh water, antifreeze, mild chemicals, and bilge water
Resistant to general chemicals and non-polar solvents
Suitable for liquid circulation and transfer applications
Connections for 3/4" BSP/NPT
Continuously rated
Fluid temperature range: 4ºC (39ºF) min to 95ºC (203ºF) max
Head unit rotates in 90° segments , offering 4 port options
316L stainless steel pump head

Stainless steel anti-clogging impeller

Technical specification:

Model	Volts	Open Flow	Max Draw	Fuse	Stall Pressure	Max Head	Ports
CP01B-29000812	12V	29GPM/110LPM	13A	15A	8PSI/0.55Bar	5.5m/18ft	3/4" BSP
CP01B-29000824	24V		7A	10A			3/4" BSP
CP01N-29000812	12V		13A	15A			3/4" NPT
CP01N-29000824	24V		7A	10A			3/4" NPT

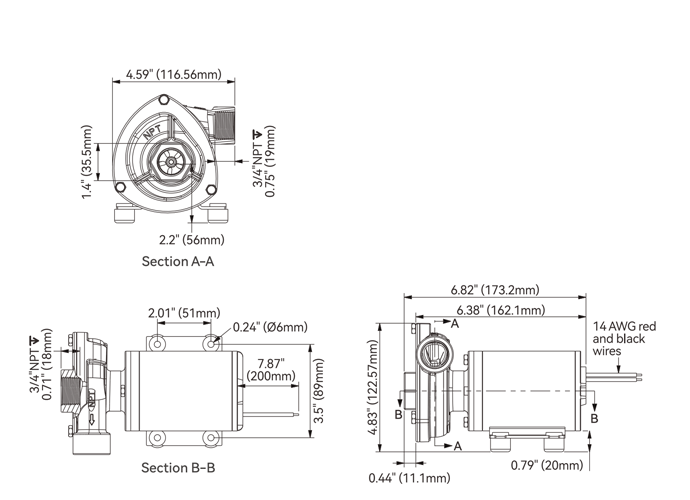

Dimension Parameter:
